DIY Elements

Do-It-Yourself Bendable Heating Elements (DIY)
DIY Elements are purchased in the straight length and bent to suit the appliance on site.  Each DIY range are suitable for either WET (W) or DRY (D) applications.

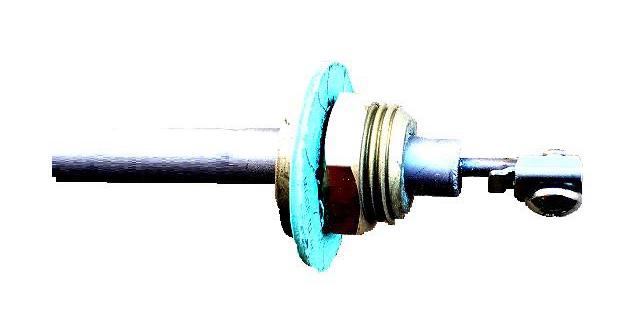

The DIY range comes complete with 1/2″ long 3/8″BSP (Aprox. 16mm) diameter brass glands, fibre washers and brass back nuts. Both ends of the elements are fitted with 4mm screw and washer terminations.

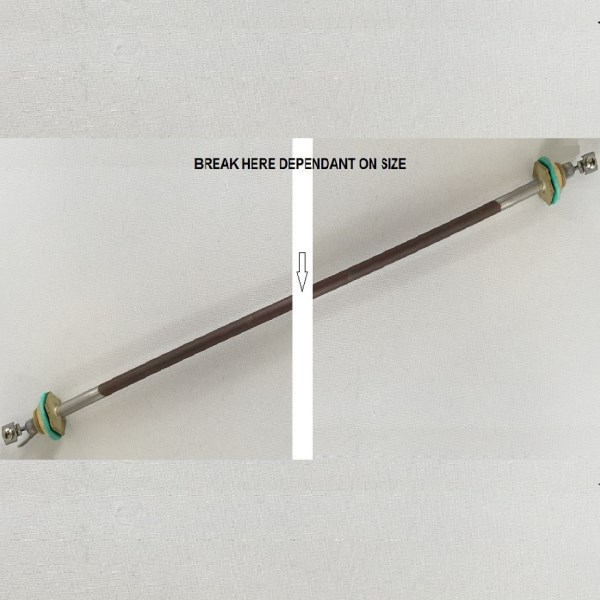

Element Bending Suggestions
Do not bend the elements in cold zones. (Area aprox.75mm from glands) If you require tight end bends on your element, let us know we may be able to bend to your specifications. Once the element is bent, do not try to straighten the element, as this may fracture the sheath.
Need a different size
The standard DIY range varies from aprox. 700mm in length to 3200mm. If you require a straight heating element that is either shorter or longer than those specified on this site, please contact us.

Showing all 15 results

    $85.92 Add to cart $82.40 Add to cart $90.66 Add to cart $85.00 Add to cart $96.08 Add to cart $88.30 Add to cart $101.70 Add to cart $92.80 Add to cart $107.60 Add to cart $95.20 Add to cart $112.30 Add to cart $103.00 Add to cart $82.98 Add to cart $82.98 Add to cart $78.70 Add to cart
    DIY24W

    DIY10D

    DIY10D 1000W 240V 1020mm Bendable Heating Element

    DIY10D is a 1000W 240V  1020mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY10W

    DIY10W 1000W 240V 920mm Bendable Heating Element

    DIY10W 1000W 240V 920mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY12D

    DIY12D 1200W 240V   1420mm Bendable Heating Element

    DIY12D is a 1200W 240V 1420mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY12W

    DIY12W 1200W 240V 1120mm Bendable Heating Element

    DIY12W 1200W 240V 1120mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY15D

    DIY15D 1500W 240V 1930mm Bendable Heating Element

    DIY15D is a 1500W 240V  1930mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY15W

    DIY15W 1500W 240V 1320mm Bendable Heating Element

    DIY15W 1500W 240V 1320mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY18D

    DIY18D is a 1800W  240V  2180mm Bendable Heating Element

    DIY18D is a 1800W  240V  2180mm Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.


    DIY24W

    DIY18W

    DIY18W 1800W 240V 1708mm Bendable Heating Element

    DIY18W 1800W 240V 1708mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY20D

    DIY20D 2000W 240V Bendable Heating Element

    DIY20D is a 2000W 240V  2490mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY20W

    DIY20W 2000W 240V 1830mm Bendable Heating Element

    DIY20W 2000W 240V 1830mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY24D

    DIY24D 2400W 240V 2890mm Bendable Heating Element

    DIY20D is a 2000W 240V  2890mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY24W

    DIY24W 2400W 240V 2340mm Bendable Heating Element

    DIY24W 2400W 240V 2340mm Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY6D

    DIY6D 600W 240V 720mm Bendable Heating Element

    DIY6D is a 600W 240V  720mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY7D

    DIY7D 750W 240V 1000mm Bendable Heating Element

    DIY7D is a 750W 240V  1000mm  Bendable Heating Element with  3/8″BSP glands for dry applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.




    DIY24W

    DIY7W

    DIY7W 600W 240V 710mm Bendable Heating Element

    DIY7W is a 600W 240V  710mm  Bendable Heating Element with  3/8″BSP glands for wet applications. All elements come with fibre gaskets and back nuts with a screw and washer termination.
